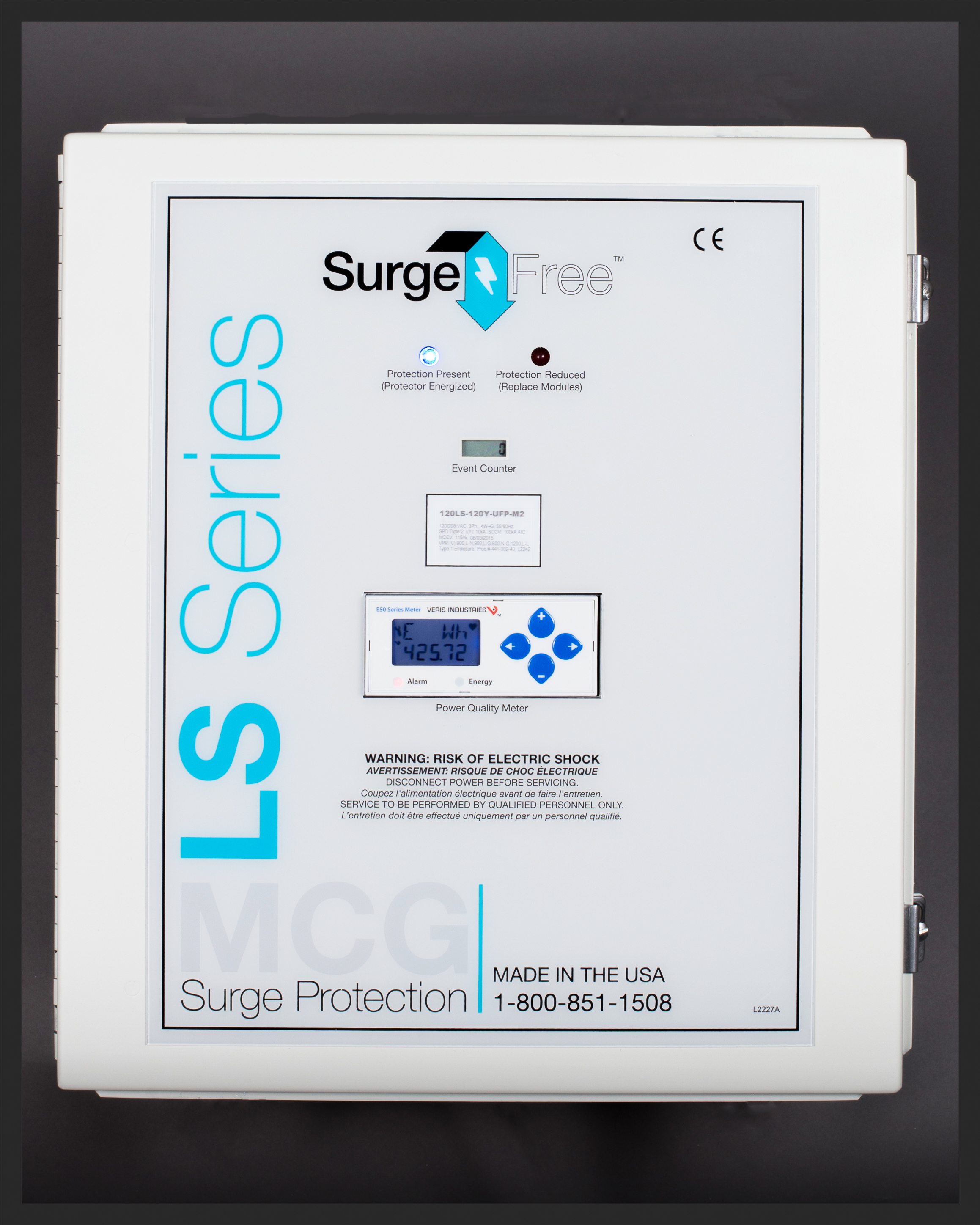

200LS EXECUTIVE
Options Available: Internal Disconnect • NEMA 1 Enclosure • Flush Mount Kit • Low Impedance Micro-Z cable (click here for more info)
Main Service Panel AC Power Line Protection
with Enhanced Power/Energy Metering
The 200LS Executive Series provides 200,000A of rugged surge protection at the main service panel along with new onboard, revenue-grade power and energy meter. Each phase is guarded by five redundant protection paths – reassuring when sensitive equipment’s continuous operation is at stake. Twenty-year, no-nonsense warranty (five-year warranty on power meter); free protection modules for life. Series features mix-and-match options for a customized protector at stock prices.
Features:
200LS Executive: I peak=200,000A/Phase (8x20μs waveform)
Revenue-grade power and energy meter
UL1449 5th Edition
NEMA LS1-1992
Five times redundant protection paths per phase
Employs new 40kA varistors with built in high-speed thermal disconnect and dedicated cartridge fuse per surge path
Solid copper bus bar construction
Field-replaceable modules
EMI/RFI noise filtering
Continuously monitored protection circuits
Internal and external status indicators
Upgraded Front Panel w/ Surge Event Counter, beeper, and status relay (1 form C contacts)
NEMA 1 enclosure, powder coated steel
Download Link For Veris E50XX Metering Software
20 YEAR NO-NONSENSE WARRANTY.
5 YEAR WARRANTY ON METER.
LIFETIME ON REPLACEABLE MODULES.
Popular Applications Include:
Monitor power and energy use of an entire facility or of a single piece of equipment.
Monitoring system voltage and current (up to 32,000A) as well as other parameters.
Ensuring accuracy in utility billing and crediting by allowing users to compare kilowatt-hours.
Alerting users if a predetermined energy use or electrical parameter is outside of the user’s acceptable region.
Energy monitoring in building automation systems.
Energy Management – track where and when energy is used in an industrial plant or building.
Cost allocation (how much does a particular process or equipment cost to run?)
Industrial Monitoring – track usage of assembly lines or equipment/processes.
Commercial submetering.
Renewable energy – monitors power exported to grid from the renewable energy source and power imported from grid.
